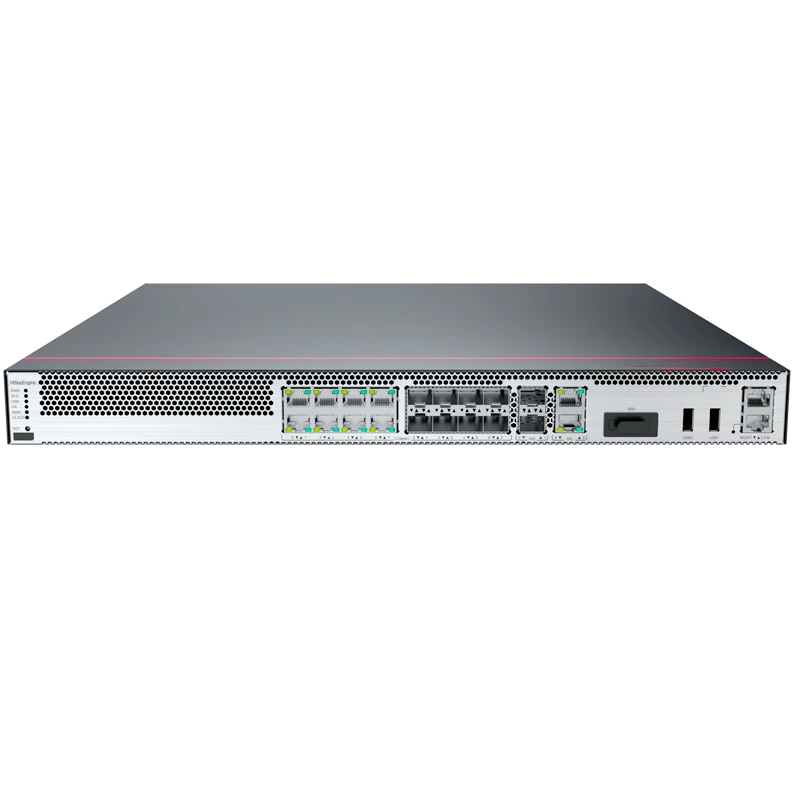

Next-Generation AI Firewall USG6590F Security Firewall for Enterprise Data Center
● Model No.: USG6590F
● Size: 442mm × 420mm × 43.6mm
● Interface configuration: 2×GE RJ45 + 8×GE COMBO+ 2×10GE SFP+
● Main features: 16Gbps firewall throughput, integrated 10 Gigabit optical port + Gigabit combo, built-in AI threat detection, VPN, IPS/AV, and Anti-DDoS integrated security capabilities.
● Application scenarios: Border security gateways for medium and large enterprises / data centers / industry cores
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Large and medium-sized enterprises / Government and enterprise core exit points
Data center perimeter protection
High-density wireless for universities / hospitals / supermarkets
Core branches of financial institutions / securities firms / insurance companies
Interconnection of chain stores / cross-regional headquarters
Core selling points
16Gbps firewall throughput, 10 million concurrent connections, supporting high-density internet access for 3000-5000 users in enterprises/campuses.
Compatible with Wi-Fi 6/7 10 Gigabit AC+AP (e.g., 9703-S+8761-X1) networking, eliminating wireless traffic bottlenecks.
NP hardware acceleration, small packet forwarding latency < 10μs, meeting the low-latency requirements of video/voice/industrial control.
Self-developed CDE content detection engine, identifying hidden viruses even with 100 layers of compression.
AI behavioral analysis: 95% detection rate for unknown Trojans/ransomware/cryptocurrency mining, defending against 0-day vulnerabilities.
Coverage for tens of thousands of CVE vulnerabilities, SQL injection/XSS/WebShell and other web attacks.
2×10GE optical uplink + 8×GE COMBO downlink, compatible with optical/electrical links.
Supports routing, transparent, and hybrid deployments; plug and play with no network modifications required.
Parameters
| parameter category | Specification Details |
| Product Model | USG6590F-K (AC AC version) |
| device form factor | 1U rack mounted; 442 × 420 × 43.6mm; approximately 5.5kg |
| performance metrics | Firewall throughput of 16Gbps; Application layer throughput of 10Gbps |
| Maximum concurrent connections of 10 million; 120000 new connections created per second | |
| Fixed interface | 2 x GE RJ45+8 x GE COMBO (electrical/optical)+2 x 10GE SFP+ |
| scalability | Support hot swappable 2.5-inch SATA SSD (240GB/480GB/960GB) |
| VPN capability | IPSec throughput of 20Gbps; SSL VPN concurrent 8000 users |
| safety function | Firewall, VPN, IPS, AV, URL filtering Anti-DDoS、 Application Control |
| AI engine | Unknown threat detection rate of 95%; Covering billions of virus variants |
| virtualization | Supports 1000 Virtual Systems (VSYS) |
| highly reliable | Dual AC redundant power supply; BYPASS bypass; Hot swappable SSD |
| Power supply/power consumption | 100～240V AC； Maximum power consumption 300W |
| working environment | Temperature: 0 ℃~45 ℃; Humidity: 5% to 95% (non condensing) |
