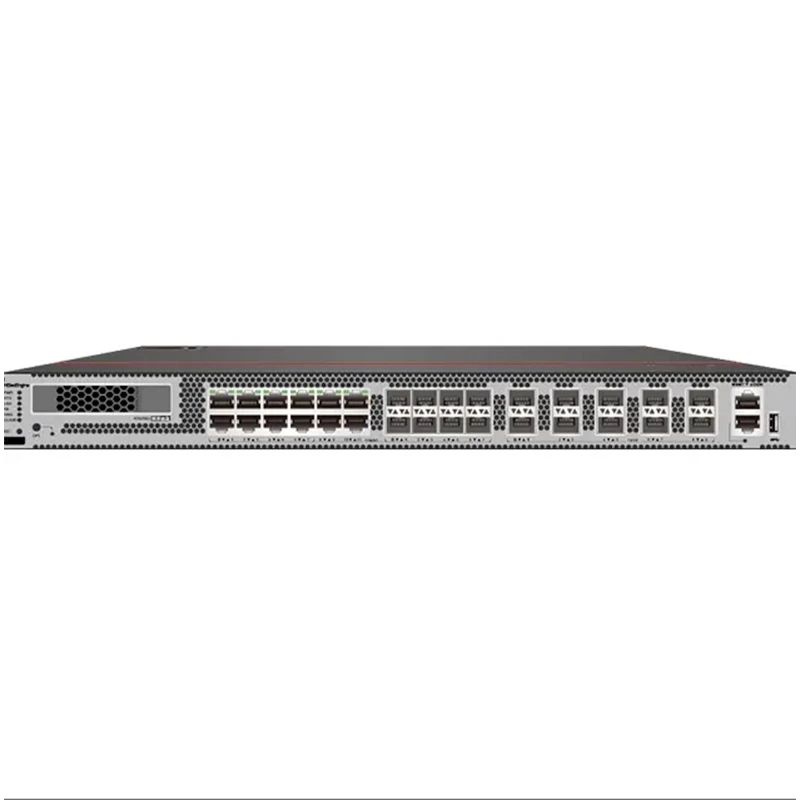

Next-Generation AI Firewall USG6655F Enterprise Firewall with 8*GE COMBO ports

USG6655F-AC 02353WAW 8*GE COMBO + 4*GE RJ45 + 10*10GE SFP+ ,2 AC POWER security network firewall
The USG6655F is a high-end AI firewall in the USG6600F series, positioned as a core security gateway for large government and enterprise headquarters, medium-sized data centers, financial core nodes, and high-end industrial parks. Based on a multi-core distributed hardware architecture, it integrates firewall, VPN, IPS, antivirus, URL filtering, Anti-DDoS, SD-WAN, and intelligent operation and maintenance capabilities, providing 50Gbps firewall throughput and 10Gbps threat protection. With high-density GE/10GE ports, it balances ultra-high performance, high reliability, and all-scenario security protection.

● Model No.: USG6655F

● Size: 442mm × 420mm × 43.6mm

● Interface configuration:  8*Ge Combo + 4*Ge RJ45 + 10*10ge SFP+

● Main features: 50Gbps firewall throughput and 10Gbps threat protection, coupled with high-density GE/10GE ports.

● Application scenarios: Large government and enterprise headquarters, medium-sized data centers, and core financial nodes

● Warranty: 1 years

● MOQ: 1 pieces

5.0
design customization

    oops...!

    no product data.

    Go to homepage

    Application scenarios

    As the core firewall for large enterprise headquarters or large campuses, it leverages its 10 10 Gigabit interfaces to aggregate traffic from multiple core switches or aggregation devices, providing high-performance north-south security protection and bandwidth management.


    At the edge of large data centers or cloud data centers, it acts as a data center firewall, providing high-performance north-south traffic protection to prevent external attacks and ensure the secure and stable operation of cloud services.


    As the core security gateway for managed data centers or internet service providers, it provides high-performance, scalable security services to multiple customers.

    H80944dcb536642c883a1bff81239c2c4V
    H4208c8ee64ab4d2b895192bf1f0c31dd0

    Core selling points

    50Gbps firewall throughput, 10Gbps full-threat protection, **10 10GE SFP+ ports** to meet high-speed uplink and high-density server/AP access; 8 GE COMBO ports for flexible adaptation to optical/electrical terminals, 1U chassis balancing performance and space.


    Built-in CDE intelligent detection engine, 97% malicious file detection rate; 25,000+ IPS signatures, 85%+ default blocking rate, accurately identifying ransomware, cryptocurrency mining, remote control Trojans, and other variant threats, with lower false positives and more accurate protection.


    Integrates firewall, VPN, IPS, AV, URL filtering, Anti-DDoS, and application control into one unit, requiring no additional security equipment; supports industrial control protocol management (Modbus/S7, etc.), adapting to the compliance needs of government, enterprise, finance, manufacturing, and other industries.


    Supports 2048 virtual systems (VSYS) to meet the isolation requirements of IDC/multi-department/multi-tenant systems; dual power supply, 1+3 fan redundancy, HA primary/standby/primary primary, BFD millisecond-level fault detection to ensure uninterrupted 24/7 business operations.

    Parameters

    parameter category Specification Details
    Hardware Specifications
    Product Model USG6655F-AC (AC host)
    Chassis specifications 1U rack mounted, size 442 × 420 × 43.6mm, empty weight 7.3kg
    Fixed port 8 x GE COMBO (optical/electrical adaptive)+4 x GE RJ45+10 x 10GE SFP+
    management port 1 x RJ45 Console, 1 x USB 3.0
    power supply Standard dual AC redundant power supply (100-240V), 1+1 backup
    heat dissipation 1+3 intelligent speed regulating fan, front inlet and rear outlet air duct
    scalability Support Bypass card insertion, optional 2.5-inch SATA hard drive (log storage, 240GB/480GB/960GB/1920GB, hot swappable)
    performance parameters
    Firewall throughput (1518 bytes) 50 Gbps
    Threat protection throughput 10 Gbps
    IPS throughput 10 Gbps
    Antivirus throughput 6.5 Gbps
    Maximum concurrent connections 20 million
    Number of new connections created per second 500000
    Virtual Systems (VSYS) Maximum 2048 (requires license extension)
    SSL VPN concurrency Maximum 10000 channels (License extension)
    IPSec VPN Tunnel Maximum of 20000 items
    Number of policy rules Up to 150000 pieces
    Power consumption and environment
    Maximum Power Consumption 242W
    Operating Temperature 0 ℃~45 ℃ (without hard drive)/5 ℃~40 ℃ (including hard drive)
    relative humidity 5%~95% (non condensing)
