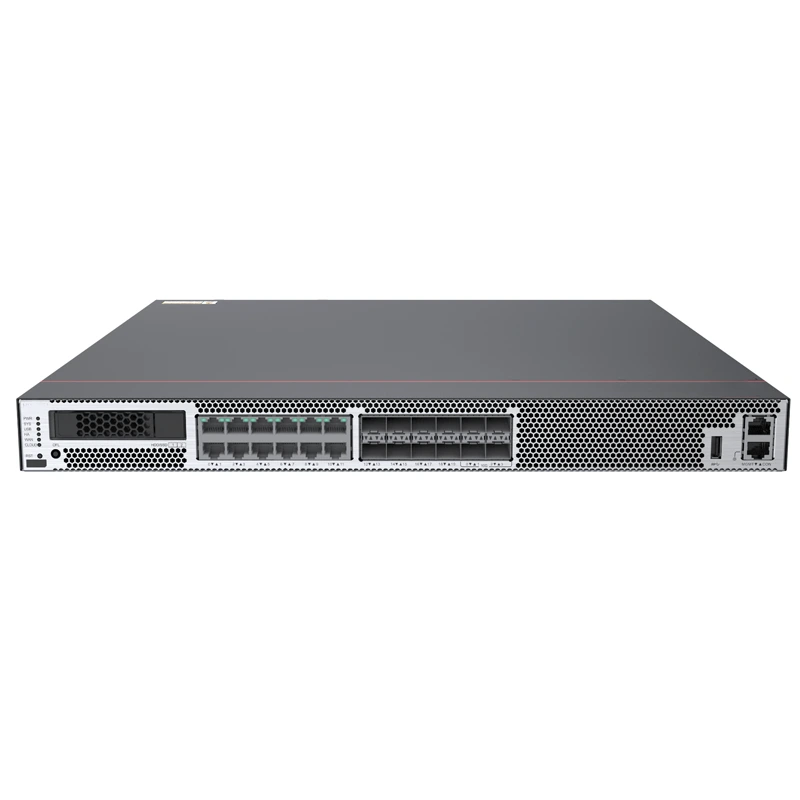

Security Firewall USG6620E AI Enterprise Firewall with 2×40GE ports
● Model No.: USG6620E
● Size: 442×420×44mm
● Interface configuration: 2×40GE (QSFP+) + 12×10GE (SFP+) + 12×GE (RJ45)
● Main features: 40GE high-speed interface and 20Gbps firewall performance
● Application scenarios: Large enterprises, core exit points of cloud data centers, and hubs for multiple branch headquarters
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Medium-sized enterprises and large branch offices
Financial industry
Education industry
Manufacturing industry
Compliance construction for government agencies and enterprises
Unified security management of multiple branches
Core selling points
1. 40G Ultra-High-Speed Backbone Interconnection
Standard configuration includes two 40GE QSFP+ optical ports, meeting the needs of 40G uplink in data centers, cross-regional backbone interconnection, and high-traffic east-west protection, with bandwidth density four times higher than 10GE.
A 12×10GE + 12×GE combination accommodates both high-density server access and traditional gigabit terminal access, providing full-scenario coverage.
2. AI Intelligent Threat Defense (CDE Engine)
Built-in Huawei Galaxy AI Engine, it can identify threats in encrypted traffic without decryption, achieving a 95%+ detection rate for unknown threats.
Defends against ransomware, zero-day vulnerabilities, and APT attacks, linking sandbox and intelligent analysis to build a proactive defense system.
3. High-Performance Full-Service Concurrency
Multi-core CPU + NP forwarding + encryption/decryption + pattern matching four hardware acceleration engines ensure no degradation during multi-service (FW/IPS/AV/VPN) concurrency.
With its high performance and latency of <15μs, small packets are well-suited for demanding applications such as low-latency transactions, video conferencing, and real-time databases.
Parameters
| parameter category | Detailed Specifications |
| Equipment form | 1U rack mounted |
| Firewall performance | Firewall throughput of 20Gbps (1518 bytes); 10Gbps (64 bytes) |
| comprehensive performance | FW+SA+IPS+AV 5Gbps |
| Concurrent/New Connection | Maximum concurrent connections of 8 million; 400000 new connections created per second |
| interface configuration | 2×40GE (QSFP+) + 12×10GE (SFP+) + 12×GE (RJ45) |
| VPN capability | IPSec throughput 30Gbps; SSL VPN throughput 3Gbps |
| SSL VPN users | Default 100 users, expandable to a maximum of 2000 users |
| hardware configuration | 8-core 2.3GHz processor; 8GB DDR4 memory; 32GB Flash |
| virtualization | Supports 500 Virtual Systems (VSYS) |
| Storage Expansion | Optional 2.5-inch SSD (240GB)/HDD (1TB), hot swappable |
| power supply | AC 100~240V； Standard single power supply, optional dual power redundancy |
| power consumption | Maximum 180W |
| Size/Weight | 442×420×44mm；7.6kg |
| load capacity | 3000~5000 users |
| Operating temperature and humidity | 0~45 ℃ (without hard drive); 5~40 ℃ (including hard drive); 5%~95% non condensing |
