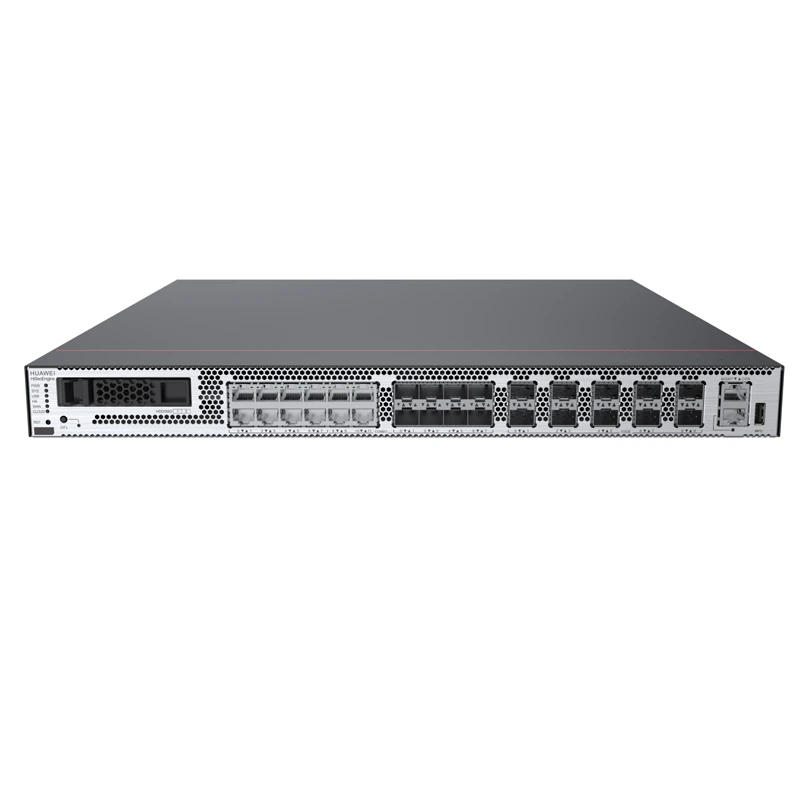

Security Firewall USG6635F Enterprise Firewall with 10×10GE ports

USG6635F-AC 02355FDP 02353WAV (HTM) 8*Ge Combo + 4*Ge RJ45 + 10*10ge SFP+ 1U Security Firewalls
The USG6635F is a next-generation AI firewall in the USG6600F series, positioned as a core security gateway for mid-to-high-end enterprises, large campuses, data center boundaries, and multi-branch headquarters. Based on a multi-core distributed hardware architecture, it integrates firewall, VPN, IPS, antivirus, URL filtering, Anti-DDoS, SD-WAN, and intelligent operation and maintenance capabilities, providing 35Gbps firewall throughput and 7Gbps threat protection. With high-density GE/10GE ports, it balances high performance, high reliability, and all-scenario security protection.

● Model No.: USG6635F

● Size: 442mm × 420mm × 43.6mm

● Interface configuration:  8*Ge Combo + 4*Ge RJ45 + 10*10ge SFP+

● Main features: 35Gbps firewall throughput and 7Gbps threat protection, coupled with high-density GE/10GE ports.

● Application scenarios: Mid-to-high-end enterprises, large industrial parks, and data center boundaries

● Warranty: 1 years

● MOQ: 1 pieces

5.0
design customization

    oops...!

    no product data.

    Go to homepage

    Application scenarios

    1. Internet exit for large enterprises/government headquarters


    2. Data center perimeter/server zone protection


    3. VPN hub for multi-branch headquarters


    4. Core security gateway for large campuses/universities


    5. Private networks for the financial/medical/manufacturing industries

    11 (9)
    Hb7dde5558e004638a3444e8e134c25ad9 (2)

    Core selling points

    Ultra-high performance + high-density 10 Gigabit ports: 35Gbps firewall throughput, 7Gbps full-threat protection, 10 10GE SFP+ ports for high-speed uplink and high-density server/AP access; 8 GE COMBO ports for flexible adaptation to optical/electrical terminals, 1U chassis balancing performance and space.


    AI-driven intelligent threat defense: Built-in CDE intelligent detection engine with a 97% malicious file detection rate; 12,000+ IPS signatures, 80%+ default blocking rate, accurately identifying ransomware, cryptocurrency mining, remote control Trojans, and other variant threats, with lower false positives and more accurate protection.


    Integrated full-scenario security capabilities: Integrates firewall, VPN, IPS, AV, URL filtering, Anti-DDoS, and application control into one system, requiring no additional security equipment; supports industrial control protocol management (Modbus/S7, etc.), adapting to the compliance needs of government, enterprise, finance, manufacturing, and other industries.


    The multi-tenant and high-reliability design supports 1000 virtual systems (VSYS) to meet the isolation requirements of IDC/multi-department/multi-tenant systems; dual power supply, 1+3 fan redundancy, HA primary/standby/primary primary, BFD millisecond-level fault detection ensure uninterrupted 24/7 business operations.

    Parameters

    parameter category Specification Details
    Hardware Specifications
    Product Model USG6635F-AC (AC host)
    Chassis specifications 1U rack mounted, size 442 × 420 × 43.6mm, empty weight 7.3kg
    Fixed port 8 x GE COMBO (optical/electrical adaptive)+4 x GE RJ45+10 x 10GE SFP+
    management port 1 x RJ45 Console, 1 x USB 3.0
    power supply Standard dual AC redundant power supply (100-240V), 1+1 backup
    heat dissipation 1+3 intelligent speed regulating fan, front inlet and rear outlet air duct
    scalability Support Bypass card insertion and optional 2.5-inch SATA hard drive (log storage)
    performance parameters
    Firewall throughput (1518 bytes) 35Gbps
    Threat protection throughput 7Gbps
    IPS throughput 7Gbps
    Antivirus throughput 4.8Gbps
    Maximum concurrent connections 20 million
    Number of new connections created per second 500000 yuan
    Virtual Systems (VSYS) Up to 1000
    SSL VPN concurrency Maximum 10000 channels (License extension)
    IPSec VPN Tunnel Maximum 10000 items
    Number of policy rules Maximum 100000 pieces
    Power consumption and environment
    Maximum Power Consumption 242W
    Operating Temperature 0 ℃~45 ℃ (without hard drive)/5 ℃~40 ℃ (including hard drive)
    relative humidity 5%~95% (non condensing)
    Software Features
    security capability State firewall, NAT, IPS, AV, URL filtering, application control, Anti DDoS, ECA encrypted traffic analysis, threat entrapment
    VPN IPSec、SSL、GRE、L2TP, Support State Secrets SM2/SM3/SM4
    virtualization 1000 VSYS, primary/backup/primary/backup HA, BFD, ERPS
    Intelligent Operations Telemetry、iPCA、 Visual reports, zero configuration deployment, cloud management
    Network characteristics IPv4/IPv6 dual stack, OSPF/BGP/IS-IS, SD-WAN intelligent routing, server load balancing
