02115934 S9300X-4 Chassis For S9300x Series Switches 1

02115934 S9300X-4 Chassis For S9300x Series Switches 2

02115934 S9300X-4 Chassis For S9300x Series Switches 3

02115934 S9300X-4 Chassis For S9300x Series Switches

Samples:

$500.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-10(pieces):3(days),11-100(pieces):7(days),101-500(pieces):15(days),>500(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S9300X-4

Inquiry

Write a Review

Use

other

Place of Origin

Guangdong, China

Type

Enterprise Switch

Product Description

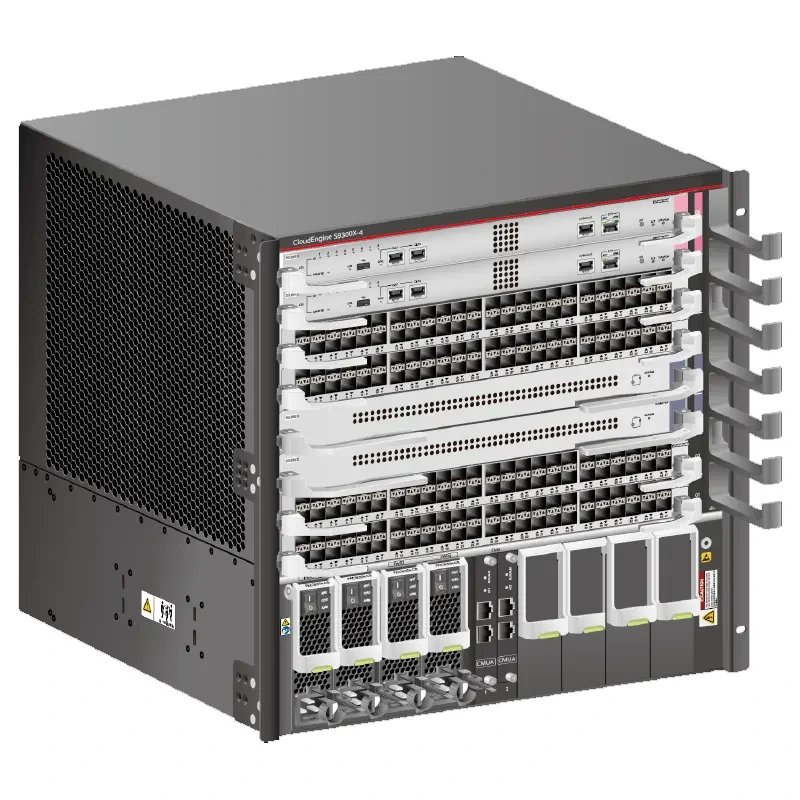

The S9300X-4 chassis is 10 U high (1 U = 44.45 mm). When the chassis has no cable management frames installed, the dimensions (H x W x D) are 441.7 mm x 442 mm x 517.4 mm. When the chassis has cable management frames installed, the dimensions (H x W x D) are 441.7 mm x 442 mm x 585 mm

Details Images

02115934 S9300X-4 chassis for S9300X Series Switches

Specification

Item	Description
Number of LPU slots	4
Number of MPU slots	2
Number of SFU slots	2
Number of fan slots	2
Number of power module slots	4
Number of CMU slots	2
Port density per chassis	192xFE, 192xGE, 192x10GE, 160x25GE, 96x40GE, 96x100GE
Installation	The switch can be installed in an N66E or N68E cabinet, one cabinet for one or two chassis.
Cluster switch system (CSS)	Service port clustering
Maximum power consumption (fully configured)	3344 W

NOTE:
The heat dissipation value of a chassis is equal to the current power consumption.

Power specifications	DC input voltage
	Rated voltage: -48 V DC to -60 V DC
	Maximum voltage range: -40 V DC to -72 V DC
	AC input voltage
	Rated voltage: 110 V AC/220 V AC, 50/60 Hz
	Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.)
	HVDC input voltage (3000 W AC)
	Rated voltage: 240 V DC
	Maximum voltage range: 190 V DC to 290 V DC
Dimensions (H x W x D, without rack-mounting brackets)	With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.)
Dimensions (H x W x D, without rack-mounting brackets)	Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured)	24.5 kg/66 kg (54 lb/145.5 lb)
Reliability and availability	Mean Time Between Failures (MTBF): 33.38 years
	Mean time to repair (MTTR): 2 hours
	Availability: 0.99999658

	NOTE:
	The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.

Environment specifications	Operating temperature and altitude:
	-60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F)
	1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.).
	4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F)
	Relative humidity: 5% RH to 95% RH (noncondensing)
	Storage temperature: -40°C to +70°C (-40°F to +158°F)
	Storage altitude: < 5000 m (16404 ft.)
