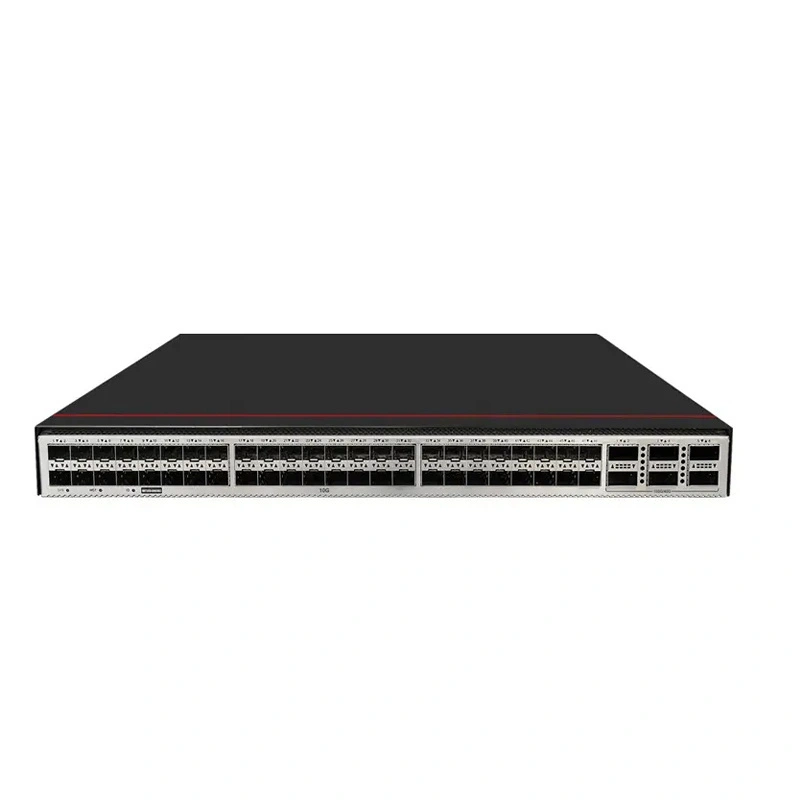

Ethernet Switch S6730-H48X6C-V2 Enterprise Core Switch with 6*100ge Qsfp28
● Model No.: S6730-H48X6C-V2
● Size: 442*420*43.6mm
● Port details:48 × 10GE SFP++6 × 40/100GE QSFP28 (RTU can be upgraded to 100GE)
● Main features:
High density 10 Gigabit access
High performance non blocking
Wired wireless integration
Cloud based intelligent operation and maintenance
The whole stack is safe and reliable
Green compact deployment
● Application scenarios:
Large park convergence: 48 ports 10 Gigabit connection access layer, 6 ports 100GE uplink connection core, on-board AC management AP, SVF simplified operation and maintenance.
Wi Fi 6 high density wireless: 48 ports support high density AP uplink, built-in AC reduces costs, and business travel guarantees user mobility.
Industry branch network: Cloud management+SVF minimal deployment, remote operation and maintenance to reduce branch IT costs, and three-layer routing to achieve headquarters branch interconnection.
● Warranty: 1 years
● MOQ: 1 pieces
Application scenarios
Large-scale campus aggregation/small-to-medium-sized campus core: In large-scale campus networks in industries such as transportation, manufacturing, and education, it acts as an aggregation layer device, aggregating traffic from access layer switches and uploading it to the core network; or in small-to-medium-sized campuses, it directly acts as a core switch, carrying all internal services.
High-density 10GE access scenarios: For scenarios requiring a large number of 10GE access points (such as data center server access, high-performance computing, large enterprise office networks, and campus networks), the switch's 48 10 Gigabit ports provide high-density access capabilities.
Smart campus and primary and secondary education scenarios: In smart campuses, its high-density 10 Gigabit ports provide stable support for multimedia classrooms and scientific research data transmission; in primary and secondary education scenarios, it can serve as a regional aggregation or core device.
Intelligent manufacturing and industrial internet: Through business-following functionality and DIP deterministic networking technology, it ensures low-latency communication for production line control systems, meeting the stringent network requirements of industrial scenarios.
Introduction
High density 10 Gigabit access: 48 port 10GE SFP+meets high density access, 6 port 40/100GE elastic uplink, RTU smoothly upgrades 100GE, adapting to future expansion.
High performance and non blocking: 1620Mpps forwarding rate, supports high concurrent services such as 4K/8K video, cloud desktop, and full port wire speed forwarding.
Wired and wireless integration: built-in onboard AC manages 1024 APs, SVF simplifies deployment, business travel guarantees mobile experience, and reduces AC hardware costs.
Cloud based intelligent operation and maintenance: Telemetry real-time collection, iPCA 2.0 second level troubleshooting, CloudEngine SDN cloud management, and operation and maintenance efficiency increased by 90%.
The whole stack is safe and reliable: MACsec encryption, NAC access, ARP/DoS defense, 1+1 redundant power supply+hot swappable fan, SEP/ERPS 50ms ring network protection, meeting equal protection 2.0.
Green compact deployment: 1U rack, wide temperature (-5 ℃~45 ℃) operation, intelligent speed regulation, low noise and low power consumption, suitable for multiple scenarios
Parameters
| Chassis material | Metal |
| Height[mm] | 43.6 mm |
| Depth[mm] | 420.0 mm |
| Wide[mm] | 442.0 mm |
| Chassis height[U] | 1 |
| Weight with packaging[kg(lb)] | 8.9 (19.62) |
| Weight without packaging[kg(lb)] | 5.62 (12.39) |
| Maximum power consumption[W] | High temperature 45°C (113°F), 100% traffic, and dual power modules: 181 W |
| High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 254 W | |
| Typical power consumption[W] | 149 |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Maximum heat dissipation[BTU/hour] | High temperature 45°C (113°F), 100% traffic, and dual power modules: 617.59 |
| High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 866.67 | |
| Typical heat dissipation[BTU/hour] | 508.4 |
| Power supply mode | Pluggable power supply |
| Input voltage range[V] | - AC input: 90–290 V AC; 45–65 Hz |
| - High-voltage DC input: 190 V DC to 290 V DC | |
| - DC input: -38.4 V DC to -72 V DC | |
| Rated input voltage[V] | - AC input: 100 V AC to 240 V AC; 50/60 Hz |
| - High-voltage DC input: 240 V DC | |
| - DC input: –48 V DC to –60 V DC | |
| Maximum input current[A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Number of power slots | 2 |
| Number of card slots | 0 |
| Memory | 4 GB |
| Flash memory | Physical space: 2 GB |
| Redundant power supply | 1+1 |
| Pluggable AC and DC power modules can be used together in the same switch. | |
| Types of fans | Pluggable |
| Noise at normal temperature (acoustic power)[dB(A)] | 65 |
| Noise at normal temperature (acoustic pressure)[dB(A)] | 52 |
| Airflow direction | Air intake from front, air exhaustion from rear (front-to-rear) |
| Storage temperature[°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating temperature[°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate[°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Devices cannot start when the temperature is lower than 0°C (32°F). | |
| When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). | |
| Long-term operating relative humidity[RH] | 5% RH to 95% RH, non-condensing |
| Storage altitude[m(ft.)] | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude[m(ft.)] | 0-5000 m (0-16404 ft.) |
| MTBF[year] | 62.27 |
| MTTR[hour] | 2 |
| Availability | > 0.99999 |
| Maximum number of physical ports on the entire device | 30 |
| Maximum number of 100GE ports | 6 (with a license activated) |
| Maximum number of 40GE ports | 6 |
| Maximum number of 25GE ports | 0 |
| Maximum number of 10GE ports | 24 |
| Maximum number of GE ports | 24 |
| Maximum number of FE ports | 0 |
| 100G optical interface | 6 |
| 40G optical interface | 6 |
| 10GE optical interface | 24 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Service port surge protection[kV] | - |
| Power supply surge protection | - AC power module configured: ±6 kV in differential mode, ±6 kV in common mode |
| - DC power module configured: ±2 kV in differential mode, ±4 kV in common mode | |
| RPS input | Not supported |
