S5755-H24HB2Y2CZ 98012434 Industrial Switch with 16*10ge SFP+ Ports, 8*25ge/10ge SFP28 Ports
5.0
Samples:
$2700/piece | Min. order : 1 piece
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):3(days),2-10(pieces):7(days),11-100(pieces):15(days),>100(pieces):To be negotiated(days)
Brand Name:
hw
Model Number:
S5755-H24HB2Y2CZ
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Weight
9 kg
Use
other
Place of Origin
Guangdong, China
Type
Enterprise Switch
Products Description
CloudEngine S5755-H series multi-GE switches are high-quality gigabit access switches with 24- or 48-port options, offering GE/Multi-GE electrical downlink ports, four 10GE, four 25GE plus two 100GE uplink ports. By leveraging HW's unified software platform, CloudEngine S5755-H series multi-GE switches create a multi-purpose network through VXLAN-based network virtualization. The series also stands out for free mobility that delivers consistent user experience anywhere, anytime. A maximum of 48 downlink ports and MACsec support on all ports make CloudEngine S5755-H the best choice of access switches for the Wi-Fi 6 and Wi-Fi 7 era. With these merits, CloudEngine S5755-H series can be widely used in healthcare, retail, mining, Internet Service Provider (ISP), and other industries.

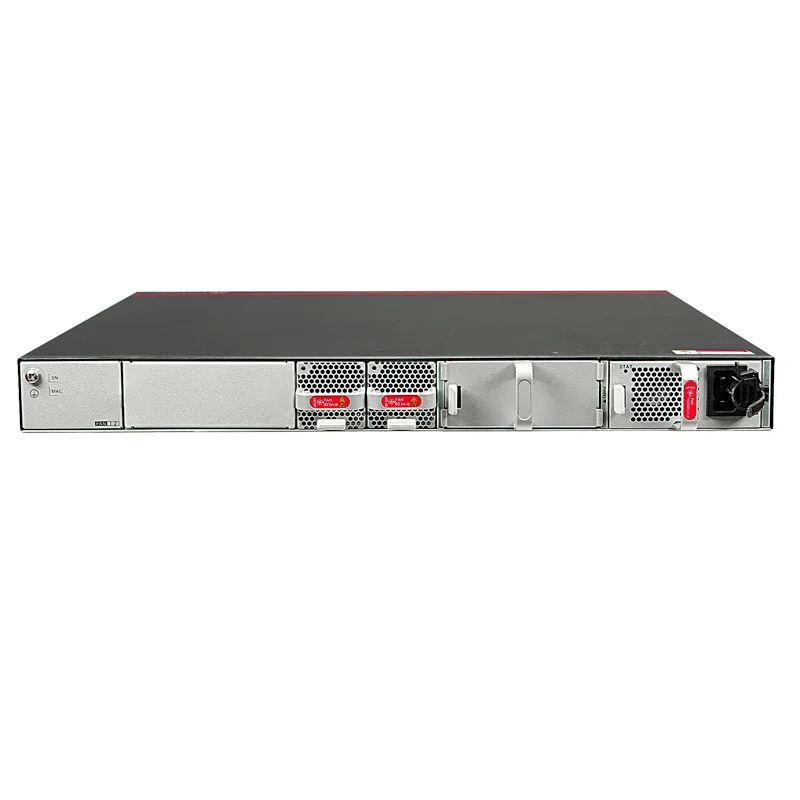

Details Images
Specification
| Chassis material | Metal |
| Height [mm] | 43.6 mm |
| Depth [mm] | 420.0 mm |
| Wide [mm] | 442.0 mm |
| Chassis height [U] | 1 |
| Weight with packaging [kg(lb)] | 8.43 (18.58) |
| Weight without packaging [kg(lb)] | 5.94 kg (13.1 lb) |
| Maximum power consumption [W] | 100% traffic under the ATIS standard and dual power modules: - 152 W (with two 1000 W AC power modules) - 158 W (with two 1000 W DC power modules) Full PoE load and three power modules: - 2566 W (PoE: 2268 W, with three 1000 W AC power modules) - 2648 W (PoE: 2268 W, with three 1000 W DC power modules) |
| Typical power consumption [W] | 30% traffic under the ATIS standard and dual power modules: - 138 W (with two 1000 W AC power modules) - 145 W (with two 1000 W DC power modules) |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Maximum heat dissipation [BTU/hour] | 100% traffic under the ATIS standard and dual power modules: - 519 (with two 1000 W AC power modules) - 539 (with two 1000 W DC power modules) Full PoE load and three power modules: - 8759 (PoE: 7738, with three 1000 W AC power modules) - 9039 (PoE: 7738, with three 1000 W DC power modules) |
| Typical heat dissipation [BTU/hour] | 30% traffic under the ATIS standard and dual power modules: - 471 (with two 1000 W AC power modules) - 495 (with two 1000 W DC power modules) |
| Power supply mode | Pluggable power supply |
| Input voltage range [V] | - AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC |
| Rated input voltage [V] | - AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz - High-voltage DC input: 240 V DC - DC input: -48 V DC to -60 V DC |
| Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Number of power slots | 3 |
| Number of card slots | 1 |
| Memory | 4 GB |
| Flash memory | Physical space: 2 GB |
| Redundant power supply | 1+1+1 Pluggable AC and DC power modules can be used together in the same switch. |
| Types of fans | Pluggable |
| Noise at normal temperature (acoustic power) [dB(A)] | 30% PoE load: 52.10 dBA |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 30% PoE load: 39.1 dBA |
| Airflow direction | Air intake from front and right and air exhaust from rear |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Short-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: - The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year. - The total time in which the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. - The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. The device cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km. When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| MTBF [year] | 55.44 |
| MTTR [hour] | 2 |
| Availability | > 0.99999 |
| Maximum number of physical ports on the entire device | 28 |
| Maximum number of 100GE ports | 2 |
| Maximum number of 40GE ports | 2 |
| Maximum number of 25GE ports | 10 |
| Maximum number of 10GE ports | 26 |
| Maximum number of GE ports | 26 |
| 100G optical interface | 2 |
| 25G optical interface | 8 |
| 10GE optical interface | 16 |
| USB | Supported |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Power supply surge protection | - Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode |
| RPS input | Not supported |
| PoE | Supported |
| PoE power supply | Supported |
