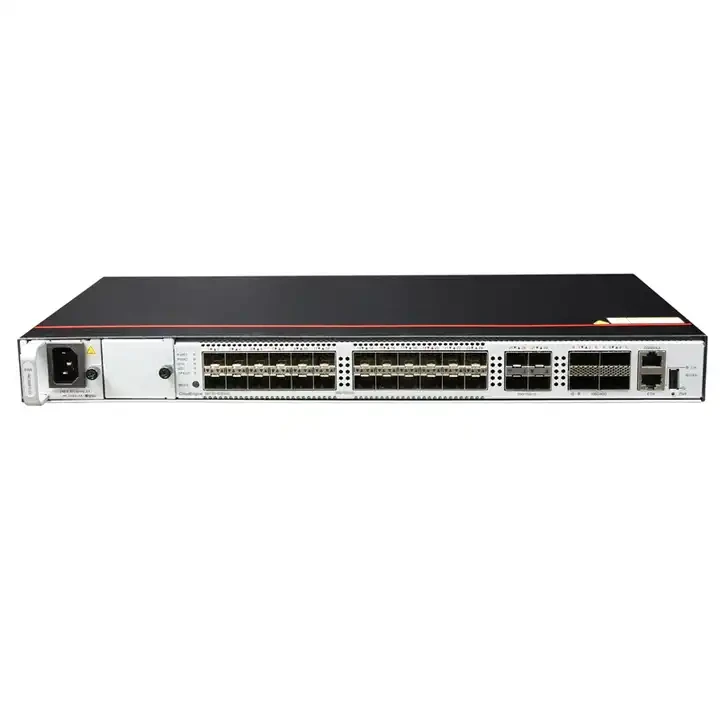

S6730-H24X4Y4C 02353nrd S6730-h Series 24*10ge Sfp+ Ports,4*25ge Sfp28 Ports,4*100ge Qsfp28 Ports Switch For H W
S6730-H24X4Y4C
Overview
| Item | Details |
|---|---|
| Description | S6730-H24X4Y4C (24*10GE SFP+ ports, 4*25GE SFP28 ports, 4*100GE QSFP28 ports, without power module) |
| Part Number | 02353NRD |
| Model | S6730-H24X4Y4C |
| First supported version | V200R020C00 |
Components
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 231.0 mm (1.72 in. x 17.4 in. x 9.1 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 115 mm × 545 mm × 360 mm (4.53 in. x 21.46 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 3.4 kg (7.5 lb) |
| Weight with packaging [kg(lb)] | 4.65 kg (10.25 lb) |
| Typical power consumption [W] | 186 W |
| Typical heat dissipation [BTU/hour] | 634.65 BTU/hour |
| Maximum power consumption [W] | 253 W |
| Maximum heat dissipation [BTU/hour] | 863.26 BTU/hour |
| MTBF [year] | 54.68 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 64.5 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans | 3 |
| Redundant power supply |
1+1 AC and DC power can be used together. |
| Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | Not supported |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to 40°C (23°F to 104°F) when it uses QSFP-100G-ER4 optical module. |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] |
300 W AC: 4 A 260 W DC: 10 A |
| Memory | 4 GB |
| Flash memory | 2 GB in total |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS | Not supported |
| Service port surge protection [kV] | - |
| Power supply surge protection [kV] |
|
| Types of fans | Built-in |
| Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air flows in from the left side and front panel, and exhausts from the right side. |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
