S6730-H48X6C 02352FSF 02353FWL 02352FSF-003 02353FWL-003 S6730-H Series Ethernet Switch 1

S6730-H48X6C 02352FSF 02353FWL 02352FSF-003 02353FWL-003 S6730-H Series Ethernet Switch 2

S6730-H48X6C 02352FSF 02353FWL 02352FSF-003 02353FWL-003 S6730-H Series Ethernet Switch 3

S6730-H48X6C 02352FSF 02353FWL 02352FSF-003 02353FWL-003 S6730-H Series Ethernet Switch

Samples:

$2000.0/piece | Min. order : 1 piece

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-100(pieces):3(days),>100(pieces):To be negotiated(days)

Customization:

Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets),Graphic customization (Min. Order: 10000 sets)

Brand Name:

Model Number:

S6730-H48X6C

Inquiry

Write a Review

Weight (with Packaging)

9.2 kg (20.28 lb)

Typical power consumption

165 W

Memory (RAM)

4 GB

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Maximum power consumption

291 W

Use

other

Place of Origin

Guangdong, China

Type

Ethernet Switch

Product Description

S6730-H48X6C

Version Mapping

Table 1 Version mapping

Series	Model	Software Version
S6730-H	S6730-H48X6C	02352FSF: V200R013C02 and later versions 02352FWL: V200R013C02 and later versions 02352FSF-003: V200R020C10 and later versions 02352FWL-003: V200R020C10 and later versions

Series

Model

Software Version

S6730-H

S6730-H48X6C

02352FSF: V200R013C02 and later versions

02352FWL: V200R013C02 and later versions

02352FSF-003: V200R020C10 and later versions

02352FWL-003: V200R020C10 and later versions

Appearance and Structure

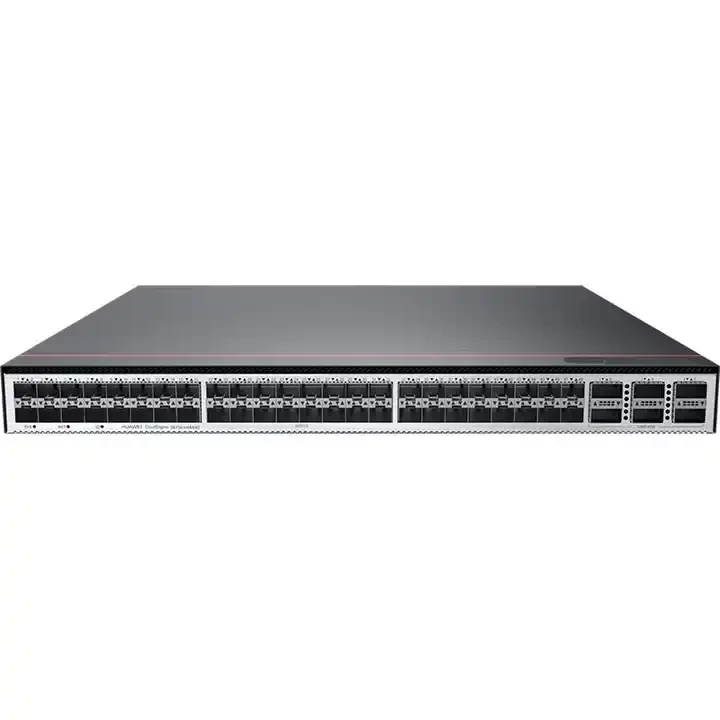

Figure 1 S6730-H48X6C appearance

S6730-H48X6C 02352FSF 02353FWL 02352FSF-003 02353FWL-003 S6730-H Series Ethernet Switch for h w

Table 2 Technical specifications

Item	Description
Memory (RAM)	4 GB
Flash	2 GB in total
Mean time between failures (MTBF)	56.87 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	N/A
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.4 in. x 17.6 in.)
Weight (with packaging)	9.2 kg (20.28 lb)
Stack ports	Any 10GE SFP+ ports (a maximum of 16 physical ports) Any 40GE/100GE QSFP28 ports (a maximum of 6 physical ports)
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	291 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	165 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 65 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02352FSF 02353FWL 02352FSF-003 02353FWL-003
